Turning Inserts

CVD Coated Carbide for Cast Iron

Newly developed coating and carbide substrate drastically extend tool life. Large lineup for a wide range of machining applications.

"Black & Gold" Optimized coating properties on rake and flank faces. Optimized coating properties on the rake face and flank face of the insert achieves wear resistance and fracture resistance.
The rake face uses a special mesh pattern suppresses the progression of delamination and maintains excellent chipping resistance. The flank face is high hardness surface layer suppresses wear. The gold-colored surface makes it easy to identify the used corner. Thick layer and strong adhesion provide stable machining through suppressed wear and delamination.
CA410K/CA415K uses a newly developed coating and carbide substrate that pursues the performance required for cast iron machining. The thick layer and strong adhesion coating improves wear resistance and delamination resistance. The carbide substrate offers excellent toughness, resists crack propagation, and suppresses coating peel-off.

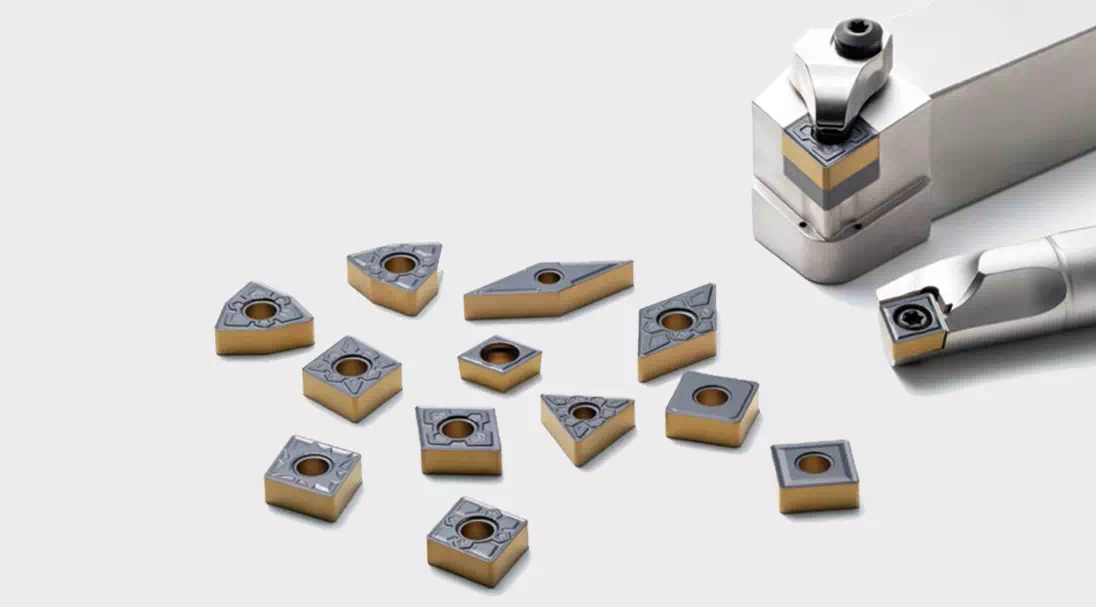

Product Lineup: CA410K – First recommendation for continuous machining; CA415K – First recommendation for interrupted machining. A lineup of breakers designed for a wide range of machining applications.

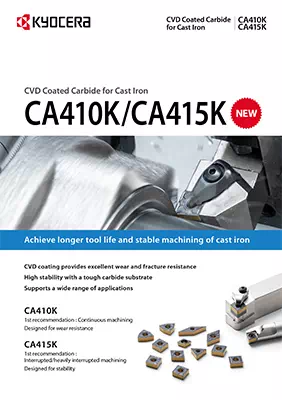

CA410K/CA415K

[ PDF ] [2723.91 KB ]

CA410K/CA415K

Link
